Auto-Pinch 25

The Auto-Pinch 25: A high-speed, versatile, automatic timed flow liquid filler reaching up to 100 containers per minute.

Compatiblity

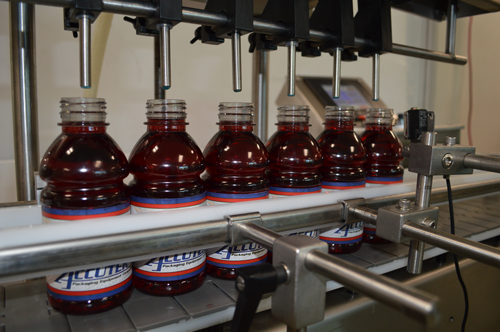

Introducing the Auto-Pinch 25: A high-speed, versatile, automatic timed flow liquid filler reaching up to 100 containers per minute. It boasts a durable stainless steel base, a 10′ variable speed conveyor, easy-to-clean parts, stainless steel nozzles, and an intuitive bottle indexing system.

Our Automatic Bottle Indexing Unit (ABI) offers a digital display with essential features like ‘no bottle – no fill,’ ‘step fill,’ ‘all fill’ modes, and an adjustable bottle counter, easily set up with minimal training. With minimal contact parts, it’s the top choice for sanitary filling in the food, pharma, cosmetic, and specialty industries. Ideal for medium-speed filling operations.

Features
    • Touch screen control package
    • Job/recipe memory
    • Stainless steel, no drip fill heads
    • Surge tank for increased accuracy
    • On the fly adjustments
    • Food grade centrifugal pump
    • Stainless steel construction
    • Automatic dual pin bottle indexing system
Options
    • Drip tray
    • Container neck locator
    • Sanitary liquid connections
    • Gravity or pressurized tank
    • Various pump upgrades
    • Diving heads
    • Positive off nozzles
    • Star wheel bottle indexing
    • Sanitary conveyor system
    • Heated package for molten product filling
Specs
Model: Auto-Pinch-25
Height: 66
Length: 120
Width: 28
Weight: ~400 lbs. (317.75 kg)
Speed: Up to 100 CPM
Fill Size: 1 oz. – 64 oz.
Air Requirements: 90psi @ 2 cfm
Electrical Requirements: 110VAC or 220/240 VAC / Single Phase / 20 Amp
Viscosity Range: 1 cps to 1000 cps
Foamy Product: Yes*
Corrosive Product: Yes*
Heated Product: Yes*
Particulates: Yes*
